Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck

Name: Sinotruk 24cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck
Brand: SINOTRUK
Price: 1 USD

Quality Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck wholesale

Brand Name : SINOTRUK

Model Number : DFL5140

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Tanker Capacity : 10000L

Engine : Cummins B19033

Gearbox : DF8S1000

Fuel tanker : 160L

Tire : 10.00R20

Overall Dimension : 8800*2500*3200mm

Contact Now

Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck

Vacuum sewage suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and / or sanitary sewer by vacuum suction pump.
It also could provide efficient solution to industrial vacuum requirement . Hydraulic system and pneumatic components could be added to fulfill the requirements of specific operations.

Product Parameter

Vehicle Description
Overall dimensions	880025003200mm
GVW	18000kg
Curb weight	7000kg
Chassis brand	DONGFENG
Traction type	4*2

Tanker Description
Tanker	Capacity	10000L
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
	Type	Double vacuum pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
	Manufacture	Hangzhou WEILONG Pump Co., Ltd.
Pipe		Suction and discharge pipe
Special function		Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45
Standard configuration		Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration		Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank

Chassis Description
Chassis model	DFL5140
Steering	LHD/RHD
Cab	Kingrun one and a half row cab , with A/C
Wheelbase	5000mm
Tire specification	10.00R20
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	Dongfeng Cummins, B190 33
	Emission level	EURO 2
	Displacement/output	5900ml/140kw
	Horse power	190hp
Gear box	Model	DF8S1000
Gear box	Number of gears	8-speed
Brake system	Air break
Axle	Front	6T
Axle	Rear	10T
Suspension	Front	8
Suspension	Rear	12+9
Fuel tanker	Type	Steel fuel tank
Fuel tanker	Capacity	160L

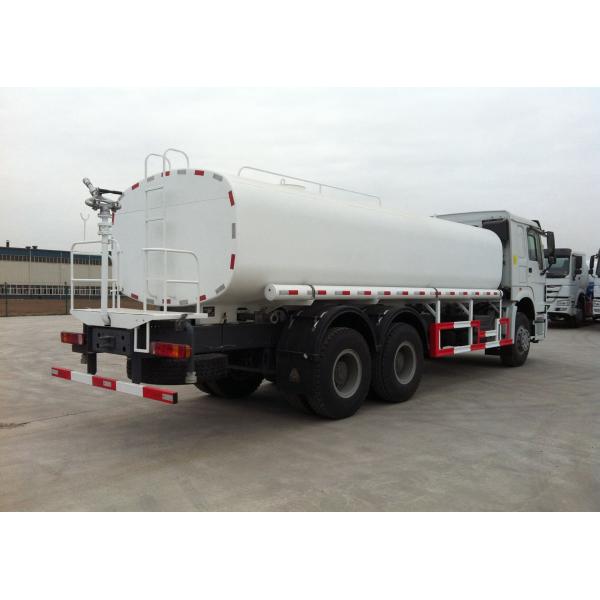

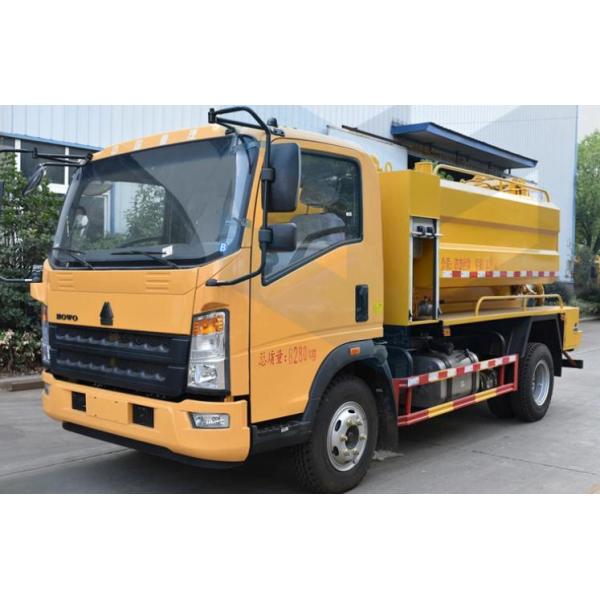

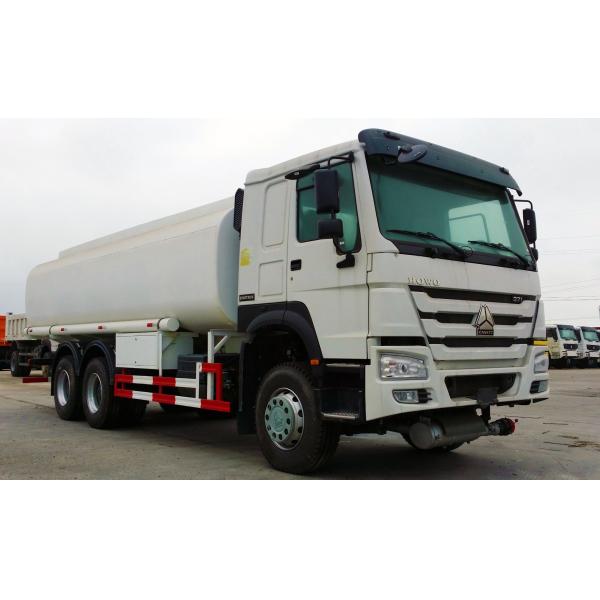

Detailed Photos
